    模塊主柄

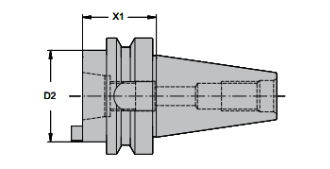

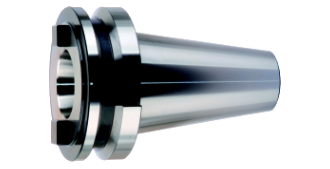

    模塊主柄 Modular Main Toolholder
    模塊主柄1.png 模塊主柄2.png


    Type ISO D2mm X1mm Kg
    BT40 N2-30 40 25 30 0.95
    BT40 N2-60 40 25 60 0.95
    BT40 N3-30 40 32 30 0.91
    BT40 N3-60 40 32 60 0.91
    BT40 N4-30 40 40 30 1.35
    BT40 N4-100 40 40 100 2.30
    BT40 N5-30 40 50 30 3.60
    BT40 N5-100 40 50 100 3.60
    BT40 N6-40 40 63 40 3.55
    BT40 N6-100 40 63 100 3.55
    BT40 N8-90 40 80 90 3.50
    BT40 N8-160 40 80 160 3.50
    BT50 N2-40 50 25 40 0.80
    BT50 N2-80 50 25 80 0.80
    BT50 N3-40 50 32 40 0.80
    BT50 N3-80 50 32 80 0.80
    BT50 N4-40 50 40 40 1.20
    BT50 N4-100 50 40 100 1.80
    BT50 N5-40 50 50 40 2.60
    BT50 N5-100 50 50 100 2.60
    BT50 N6-40 50 63 40 2.60
    BT50 N6-100 50 63 100 2.60
    BT50 N8-40 50 80 40 2.50
    BT50 N8-100 50 80 100 2.50
    SK40 N2-20 40 25 20 0.95
    SK40 N2-60 40 25 60 0.95
    SK40 N3-20 40 32 20 0.91
    SK40 N3-60 40 32 60 0.91
    SK40 N4-30 40 40 30 1.35
    SK40 N4-100 40 40 100 2.30
    SK40 N5-30 40 50 30 3.60
    SK40 N5-100 40 50 100 3.60
    SK40 N6-50 40 63 50 3.55
    SK40 N6-100 40 63 100 3.55
    SK40 N8-90 40 80 90 3.50
    SK40 N8-160 40 80 160 3.50
    SK50 N2-20 50 25 20 0.80
    SK50 N2-80 50 25 80 0.80
    SK50 N3-20 50 32 20 0.80
    SK50 N3-80 50 32 80 0.80
    SK50 N4-20 50 40 20 1.20
    SK50 N4-100 50 40 100 1.80
    SK50 N5-20 50 50 20 2.60
    SK50 N5-100 50 50 100 2.60
    SK50 N6-20 50 63 20 2.60
    SK50 N6-100 50 63 100 2.60
    SK50 N8-25 50 80 25 2.50
    SK50 N8-100 50 80 100 2.50

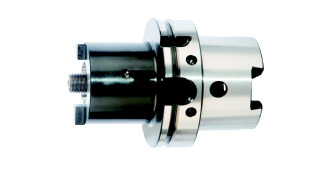

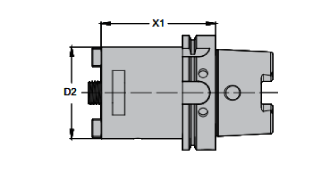

    模塊主柄 Modular Main Toolholder
    模塊主柄3.png 模塊主柄4.png


    Type ISO D2mm X1mm Kg
    HSK63A N2-80 63 25 80 0.9
    HSK63A N3-80 63 32 80 1.0
    HSK63A N4-80 63 40 80 1.1
    HSK63A N5-80 63 50 80 1.4
    HSK63A N6-75 63 63 75 2.1
    HSK63A N8-80 63 80 80 3.0
    HSK100A N2-80 100 25 80 3.0
    HSK100A N3-80 100 32 80 2.5
    HSK100A N5-80 100 50 80 2.8
    HSK100A N6-80 100 63 80 3.4
    HSK100A N8-100 100 80 100 4.1
