    圓刀片銑刀


    圓刀片銑刀-RD Modular three-sided blade-CP

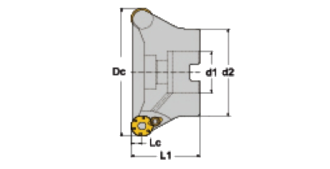

    圓刀片面銑刀.png 圓刀片銑刀-RD-2.png FIG1

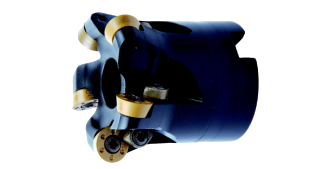

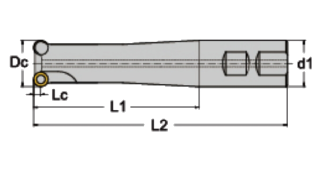

    圓刀片銑刀-RD-3.png FIG2


    Type Dc
    -0.2mm     		d1
    mm     		d2
    mm     		L1
    mm
    		 L2
    mm     		R/
    Lc(mm)     		Z Insert Type Screw Key Drawing
    No.
    M00.RD08.W25.025.Z03 25 25 / 93 150 4 3 RD..0803 FCS1005 TORX8 FIG1
    M00.RD10.W32.032.Z03 32 32 / 114 175 5 3 RD..10T3 FCS920 TORX15
    M00.RD12.W40.040.Z04 40 40 / 149 220 6 4 RD..1204 FCS359
    M00.RD12.W40.050.Z04 50 40 / 109 180 6 4
    M00.RD16.W40.050.Z03 50 40 / 109 180 8 3 RD..1605 FCS1030 TORX20
    M00.RD12.B16.040.Z04 40 16 31 45 / 6 4 RD..1204 FCS359 TORX15 FIG2
    M00.RD12.B22.050.Z05 50 22 41 50 / 6 5
    M00.RD12.B22.063.Z04 63 22 45 50 / 6 4
    M00.RD12.B22.063.Z05 63 22 45 50 / 6 5
    M00.RD12.B27.080.Z04 80 27 54 50 / 6 4
    M00.RD12.B27.080.Z06 80 27 54 50 / 6 6
    M00.RD12.B32.100.Z06 100 32 80 50 / 6 6
    M00.RD12.B32.100.Z08 100 32 80 50 / 6 8
    M00.RD16.B16.050.Z04 50 16 33 45 / 8 4 RD..1605 FCS1030 TORX20
    M00.RD16.B22.063.Z04 63 22 45 50 / 8 4
    M00.RD16.B22.063.Z05 63 22 45 50 / 8 5
    M00.RD16.B27.080.Z04 80 27 54 50 / 8 4
    M00.RD16.B27.080.Z05 80 27 54 50 / 8 5
    M00.RD16.B32.100.Z06 100 32 80 50 / 8 6
    M00.RD16.B32.100.Z07 100 32 80 50 / 8 7
    M00.RD16.B40.125.Z06 125 40 85 63 / 8 6
    M00.RD16.B40.125.Z08 125 40 85 63 / 8 8
    M00.RD20.B22.063.Z04 63 22 45 50 / 10 4 RD..2006 FCS1010 TORX20
    M00.RD20.B27.080.Z05 80 27 54 50 / 10 5
    M00.RD20.B32.100.Z06 100 32 80 50 / 10 6
    M00.RD20.B40.125.Z07 125 40 85 63 / 10 7
    M00.RD20.B40.160.Z08 160 40 130 63 / 10 8


    圓刀片銑刀-RD-4.png Insert Type D
    mm     		a° S
    mm
    RD..0803.. 8 15 3.18
    RD..10T3.. 10 15 3.97
    RD..1204.. 12 15 4.76
    RD..1605.. 16 15 5.56
    RD..2006.. 20 15 6.35


    Material Type P M K N
    Applicable lnsert Type Alloy
    steel     		Stainless
    steel     		Castiron Non-ferrous
    metals
    RDMT0803M0-D57 FPK20 FCM20 FPK20 -
    RDGT0803M0-G88 - - - FCN20
    RDMT10T3M0-D57 FPK20 FCM20 FPK20 -
    RDGT10T3M0-G88 -
    		 - - FCN20
    RDMT1204M0-D57 FPK20 FCM20 FPK20 -
    RDGT1204M0-G88 - - - FCN20
    RDMT1605M0-D57 FPK20 FCM20 FPK20 -
    RDGT1605M0-G88 -
    		 - - FCN20
    RDMT2006M0-D57 FPK20 FCM20 FPK20 -
    RDGT2006M0-G88
    		 -
    		 - - FCN20


    Diameter Range(mm) P M K N
    Unalloyed
    steel     		Low alloyed
    steel     		Tool
    steel     		Martensitic
    stainless steel     		Austenitic
    stainless steel     		Grey
    cast iron     		Ductile
    cast iron     		Malleable
    iron     		Aluminium
    alloy     		Copper
    alloy     		Non-metallic
    materials
    25(RD08) 0.10 0.08 0.08 0.06 0.06 0.12 0.10 0.10 0.10 0.08 0.08
    32(RD10) 0.15 0.12 0.12 0.08 0.08 0.20 0.15 0.15 0.12 0.10 0.10
    40-100(RD12) 0.20 0.14 0.14 0.10 0.10 0.25 0.20 0.20 0.14 0.12 0.12
    50-125(RD16) 0.25 0.20 0.20 0.12 0.12 0.30 0.25 0.25 0.16 0.14 0.14
    63-160(RD20) 0.30 0.25 0.25 0.15 0.12 0.35 0.30 0.30 0.16 0.16 0.16
    Starting value of feeds(per tooth mm):Suitable for common cutting conditions with a width of cut ≥1/2Dc; depth of cut≤1/2Lc


    圓刀片銑刀-RP Round insert milling cutter-RP


    Type Dc
    -0.2mm     		d1
    mm     		d2
    mm     		L1
    mm
    		 L2
    mm     		R/
    Lc(mm)     		Z Insert Type Screw Key Drawing
    No.
    M00.RP12.W32.032.Z02 32 32 / 125 45 6 2 RP..1204.. FCS359 TOX15 FIG1
    M00.RP12.W40.040.Z03 40 40 / 125 45 6 3
    MO0.RP12.W40.040.Z04 40 40 / 125 45 6 4
    M00.RP12.W40.050.Z04 50 40 150 50 6 4
    M00.RP12.B16.040.Z03 40 16 31 45 / 6 3 FIG2
    M00.RP12.B16.040.Z04 40 16 31 45 / 6 4
    M00.RP12.B22.050.Z04 50 22 41 50 / 6 4
    M00.RP12.B22.050.Z05 50 22 41 50 / 6 5
    M00.RP12.B22.063.Z04 63 22 45 50 / 6 4
    M00.RP12.B22.063.Z05 63 22 45 50 / 6 5
    M00.RP12.B22.063.Z06 63 22 45 50 / 6 6
    M00.RP12.B27.080.Z06 80 27 54 50 / 6 6
    M00.RP12.B27.080.Z07 80 27 54 50 / 6 7


    圓刀片銑刀-RD-4.png Insert Type D
    mm     		a° S
    mm
    RP..1204.. 12 11 4.76


    Material Type P M K N
    Applicable lnsert Type Alloy
    steel     		Stainless
    steel     		Castiron Non-ferrous
    metals
    RPMT1204M0 FCP20 FCM20 FCK20 -


    Diameter Range(mm) P M K N
    Unalloyed
    steel     		Low alloyed
    steel     		Tool
    steel     		Martensitic
    stainless steel     		Austenitic
    stainless steel     		Grey
    cast iron     		Ductile
    cast iron     		Malleable
    iron     		Aluminium
    alloy     		Copper
    alloy     		Non-metallic
    materials
    32-80 0.20 0.14 0.14 0.10 0.10 0.25 0.20 0.20 - - -
    Starting value of feeds(per tooth mm):Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤1/2Lc


    圓刀片銑刀-RO Round insert milling cutter-RO


    Type Dc
    -0.2mm     		d1
    mm     		d2
    mm     		L1
    mm
    		 R/
    Lc(mm)     		Z Insert Type Screw Key Drawing
    No.
    M00.RO10.B16.040.Z05 40 16 35 40 5 5 ROMXX10T3.. FCS359 TOX15 FIG2
    M00.RO12.B16.040.Z04 40 16 35 40 6 4 ROMXX1204.. FCS378
    M00.RO12.B16.050.Z05 50 22 45 40 6 5
    M00.RO12.B22.063.Z07 63 22 58 40 6 7


    圓刀片銑刀-RD-4.png Insert Type D
    mm     		a°
    		 S
    mm
    ROMX10T3.. 10 20 3.97
    ROMX1204.. 12 20 4.76


    Material Type P
    		 M
    		 K N
    Applicable lnsert Type Alloy
    steel     		Stainless
    steel     		Castiron Non-ferrous
    metals
    ROMX10T3M0-D57 FPK20 FCM20 FPK20 -
    ROMX1204M0-D57 FPK20 FCM20 FPK20 -


    Diameter Range(mm) P M K N
    Unalloyed
    steel     		Low alloyed
    steel     		Tool
    steel     		Martensitic
    stainless steel     		Austenitic
    stainless steel     		Grey
    cast iron     		Ductile
    cast iron     		Malleable
    iron     		Aluminium
    alloy     		Copper
    alloy     		Non-metallic
    materials
    40(RO10) 0.17 0.13 0.13 0.09 0.09 0.22 0.17 0.17 - - -
    40-63(RO12) 0.22 0.15 0.15 0.11 0.11 0.28 0.22 0.22 - - -
    Starting value of feeds(per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤1/2Lc
