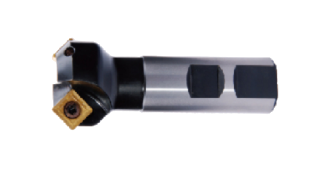

45°倒角銑刀

45°倒角銑刀	45°chamfer milling cutter

Type	Dc mm	Damm	d1 mm	L1 mm	L2 mm	Lcmm	Z	Insert Type	Screw	Key
M45.SP06.Z12.008.Z01	8	16.3	12	30	120	3	1	SP..0603..	FCS923	TORX8
M45.SP06.Z12.010.Z01	10	18.3	12	30	120	3	1
M45.SP06.Z16.012.Z02	12	20.3	16	40	160	3	2
M45.SP06.Z16.016.Z03	16	24.3	16	40	160	3	3
M45.SP09.Z16.012.Z01	12	24.2	16	40	160	5	1	SP..09T3..	FCS359	TORX15
M45.SP09.Z16.016.Z02	16	28.2	16	40	160	5	2
M45.SP09.Z20.020.Z02	20	32.2	20	40	200	5	2
M45.SP09.Z25.025.Z03	25	37.2	25	40	200	5	3
M45.SP09.Z32.032.Z03	32	44.2	32	40	250	5	3
M45.SP09.Z32.040.Z04	40	52.2	32	40	250	5	4
M45.SP12.Z20.020.Z01	20	36.7	20	40	200	7	1	SP..1204..	FCS1030	TORX20
M45.SP12.Z25.025.Z02	25	41.7	25	40	200	7	2
M45.SP12.Z32.032.Z02	32	48.7	32	40	250	7	2
M45.SP12.Z32.040.Z03	40	56.7	32	40	250	7	3

	Insert Type	D mm	a°	S mm	R mm
	SP..060304	6.35	11	3.18	0.4
	SP..09T308	9.52	11	3.97	0.8
	SP..120408	12.7	11	4.76	0.8

Material Type	P	M	K	N
Applicable lnsert Type	Alloy steel	Stainless steel	Castiron	Non-ferrous metals
SPMT060304	FPK20	FCM20	FPK20	-
SPMT09T308	FPK20	FCM20	FPK20	-
SPMT120408	FPK20	FCM20	FPK20	-

Diameter Range(mm)	P				M	K			N
	Unalloyed steel	Low alloyed steel	Tool steel	Martensitic stainless steel	Austenitic stainless steel	Grey cast iron	Ductile cast iron	Malleable iron	Aluminium alloy	Copper alloy	Non-metallic materials
8-16(SP06)	0.15	0.12	0.12	0.10	0.08	0.20	0.15	0.15	-	-	-
20-40(SP09)	0.20	0.15	0.15	0.12	0.10	0.25	0.20	0.20	-	-	-
32-40(SP12)	0.25	0.20	0.20	0.15	0.12	0.30	0.25	0.25	-	-	-
Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc
