    三面刃銑刀

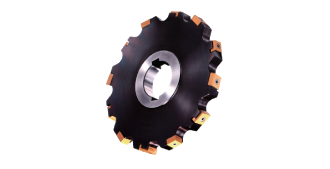

    三面刃銑刀 3-face milling cutter

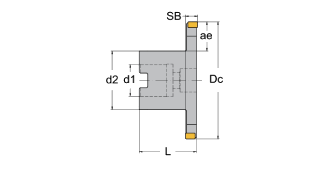

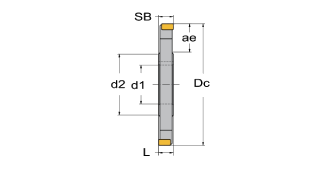

    三面刃銑刀.png 三面刃銑刀-2.png FIG1 三面刃銑刀-3.png FIG2


    Type Dc
    mm     		d1
    mm     		d2
    mm     		L
    mm     		SB
    mm     		Z ae
    max     		Insert Type Screw Key Darwing
    No.
    F10.CN08.B27.080.Z04 80 27 42 10 10 2*4 18 CN..0805.. FCS1015 TORX8 FIG1
    F10.CN08.B32.100.Z05 100 32 50 10 10 2*5 24
    F10.CN08.B40.125.Z06 125 40 65 10 10 2*6 29
    F16.CN12.B40.125.Z05 125 40 65 16 16 2*5 29 CN..1206.. FCS379 TORX15
    F16.CN12.B40.160.Z06 160 40 65 16 16 26 46
    F16.CN12.B50.200.Z07 200 50 75 16 16 2*7 61
    F10.CN08.BN22.080.Z04 80 22 45 40 10 2*4 13 CN..0805.. FCS1015 TORX8 FIG2
    F10.CN08.BN27.100.Z05 100 27 48 50 10 2*5 2
    F10.CN08.BN32.125.Z06 125 32 60 50 10 2*6 30
    F12.CN08.BN27.100.Z05 100 27 48 50 12 2*5 24 CN..0805.. FCS379 TORX8
    F12.CN08.BN32.125.Z06 125 32 60 50 12 2*6 30
    F12.CN08.BN40.160.Z07 160 40 75 50 12 2*7 40
    F16.CN12.BN32.125.Z05 125 32 60 50 16 2*5 30 CN..1206.. FCS1007 TORX15
    F16.CN12.BN40.160.Z06 160 40 75 50 16 2*6 40
    F16.CN12.BN40.200.Z07 200 40 90 50 16 2*7 50
    F20.CN12.BN40.160.Z06 160 40 75 50 20 2*6 40 CN..1206.. FCS1007 TORX15
    F20.CN12.BN40.200.Z07 200 40 90 50 20 2*7 50
    F20.CN12.BN60.250.Z08 250 60 135 50 20 2*8 55
    F25.CN16.BN40.200.Z07 200 40 90 50 25 2*7 50 CN..1608.. FCS1009 TORX20
    F25.CN16.BN60.250.708 250 60 135 50 25 2*8 55
    F25.CN16.BN60.315.Z10 315 60 135 50 25 2*10 55


    三面刃銑刀-4.png Insert Type L1
    mm     		L2
    mm     		S
    mm     		R
    mm
    CN..0805.. 8 9 5 0.8
    CN..1206.. 12 13 6.5 0.8
    CN..1608.. 16 15 8 1.2


    Material Type P M K N
    Applicable lnsert Type Alloy
    steel     		Stainless
    steel     		Castiron Non-ferrous
    metals
    CNMU080508-D57T FPK20 FCM20 FPK20 -
    CNMU120608-D57T FPK20 FCM20 FPK20 -
    CNMU160812-D57T FPK20 FCM20 FPK20 -


    Diameter Range(mm) P M K N
    Unalloyed
    steel     		Low alloyed
    steel     		Tool
    steel     		Martensitic
    stainless steel     		Austenitic
    stainless steel     		Grey
    cast iron     		Ductile
    cast iron     		Malleable
    iron     		Aluminium
    alloy     		Copper
    alloy     		Non-metallic
    materials
    80-125(SB10) 0.12 0.10 0.10 0.06 0.06 0.14 0.12 0.12 - - -
    100-160(SB12) 0.15 0.13 0.13 0.08 0.08 0.18 0.15 0.15 - - -
    125-200(SB16) 0.20 0.17 0.17 0.10 0.10 0.23 0.20 0.20 - - -
    160-250(SB20) 0.17 0.14 0.14 0.08 0.08 0.19 0.17 0.17 - - -
    200-315(SB25) 0.23 0.20 0.20 0.13 0.13 0.27 0.23 0.23 - - -
    Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc
