89.5°銑刀

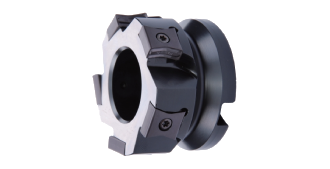

89.5°銑刀	89.5°milling cutter

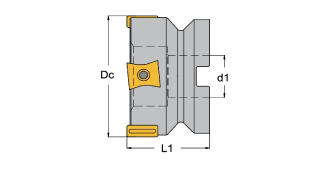

Type	Dc mm	d1 mm	L1 mm	Lc mm	Z	Insert Type	Screw	Key
M90.SP09.B16.040.Z05	40	16	40	9	5	SP..09T3..	FCS359	TORX15
M90.SP09.B22.050.Z06	50	22	40	9	6
M90.SP09.B22.063.Z07	63	22	40	9	7
M90.SP09.B27.080.Z08	80	27	50	9	8
M90.SP09.B32.100.Z09	100	32	50	9	9
M90.SP09.B40.125.Z11	125	40	63	9	11
M90.SP09.B40.160.Z13	160	40	63	9	13
M90.SP12.B22.050.Z04	50	22	40	12	4	SP..1204..	FCS1030	TORX20
M90.SP12.B22.063.Z05	63	22	40	12	5
M90.SP12.B27.080.Z06	80	27	50	12	6
M90.SP12.B32.100.Z07	100	32	50	12	7
M90.SP12.B40.125.Z08	125	40	63	12	8
M90.SP12.B40.160.Z10	160	40	63	12	10

	Insert Type	L1 mm	L2 mm	S mm	R mm
	SP..09T3..	9.52	11	3.97	0.8
	SP..1204..	12.7	11	4.76	0.8

Material Type	P	M	K	N
Applicable lnsert Type	Alloy steel	Stainless steel	Castiron	Non-ferrous metals
SPMT09T308	FPK20	FCM20	FPK20	-
SPMT120408	FPK20	FCM20	FPK20	-

Diameter Range(mm)	P				M	K			N
	Unalloyed steel	Low alloyed steel	Tool steel	Martensitic stainless steel	Austenitic stainless steel	Grey cast iron	Ductile cast iron	Malleable iron	Aluminium alloy	Copper alloy	Non-metallic materials
40-160(SP09)	0.15	0.12	0.12	0.10	0.08	0.20	0.15	0.15	-	-	-
50-160(SP12)	0.20	0.15	0.15	0.12	0.10	0.25	0.20	0.20	-	-	-
Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc
