| 玉米銑刀-SP | Corn milling cutter |
|
|

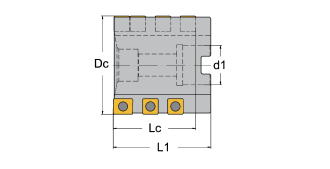

| type1 | Dcmm | d1mm | L1mm | Lcmm | z | Insert_No | type2 | Screw | Key |
| H90.SP09.B22.050.Z02.42 | 50 | 22 | 53 | 42 | 2 | 12 | LP..15T308 SP..09T308 | FCS359 FCS1030 | TORX15 |
| H90.SP09.B27.063.03.50 | 63 | 27 | 54 | 50 | 3 | 21 | |||
| H90.SP12.B32.080.Z03.67 | 80 | 32 | 80 | 67 | 3 | 21 |
LP..150412 SP..120408 |
FCS1030 | TORX20 |
| H90.SP12.B40.100.Z04.77 |
100 |
40 | 90 | 77 | 4 | 32 | |||
| H90.SP12.B50.125.Z05.87 | 125 | 50 | 100 | 87 | 5 | 45 |
|
type2 | L1mm | L2mm | a° |
S mm |
R mm |
||||||||||||
| LP..15T308 | 9.52 | 15 | 11 | 3.97 | 0.8 | |||||||||||||
| LP..150412 | 12.7 | 15.88 | 11 | 4.76 | 1.2 | |||||||||||||
|
type2 | Lmm | a° |
S mm |
R mm |
||||||||||||
| SP..09T308 | 9.52 | 11 | 3.97 | 0.8 | |||||||||||||
| SP..120408 | 12.7 | 11 | 4.76 | 0.8 | |||||||||||||
| Material_Type | P | M | K | N | ||||||||||||||||||||||||||||||||||||||||
| Applicable_Insert_Type | Alloy_steel | Stainless_steel | Cast_iron | Non-ferrous_metals | ||||||||||||||||||||||||||||||||||||||||
| LPMT15T308R-D51 | FPK20 | FCM20 | FPK20 | - | ||||||||||||||||||||||||||||||||||||||||
| LPMT150412R-D51 | FPK20 | FCM20 | FPK20 | - | ||||||||||||||||||||||||||||||||||||||||
| SPMT09T308 | FPK20 | FCM20 | FPK20 | - | ||||||||||||||||||||||||||||||||||||||||
| SPMT120408 | FPK20 | FCM20 | FPK20 | - | ||||||||||||||||||||||||||||||||||||||||
| Diameter_Range | P | M | K | N | |||||||
| Unalloyed_steel | Low alloyed steel |
Tool steel |
Martensitic stainless steel |
Austenitic stainless steel |
Grey cast iron |
Ductile cast iron |
Malleable iron |
Aluminium alloy |
Copper alloy |
Non-metallic materials |
|
| 50-65 | 0.15 | 0.12 | 0.12 | 0.08 | 0.08 | 0.20 | 0.15 | 0.15 | - | - | - |
| 80-125 | 0.20 | 0.15 | 0.15 | 0.12 | 0.10 | 0.25 | 0.20 | 0.20 | - | - | - |
| Starting value of feeds(per tooth mm):Suitable for common cutting conditions with a width of cut≥1/2Dc;depth of cut≤1/2Lc | |||||||||||
