玉米銑刀-AP/AD15

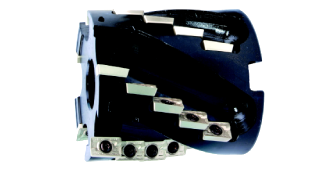

玉米銑刀-AP/AD15		Corn milling cutter-AP/AD15
			FIG1
			FIG2

Type	Dcmm	d1mm	L1mm	L2mm	Lcmm	Z	Insert No.	Insert Type	Screw	Key	Drawing No.
H90.AP15.W32.032.Z02.42	32	32	64	125	42	2	6	AP..15T3..	FCS922	TORX15	FIG1
H90.AP15.W40.040.Z03.56	40	40	79	150	56	3	12
H90.AP15.B22.050.Z03.42	50	22	55	/	42	3	9				FIG2
H90.AP15.B27.063.Z04.56	63	27	63	/	56	4	16
H90.AP15.B32.080.Z05.70	80	32	85	/	70	5	25
H90.AD15.W32.032.Z02.42	32	32	64	125	42	2	6	AD..1505..	FCS378	TORX15	FIG1
H90.AD15.W40.040.Z03.56	40	40	79	150	56	3	12
H90.AD15.B22.050.Z03.42	50	22	55	/	42	3	9				FIG2
H90.AD15.B27.063.Z03.56	63	27	63	/	56	3	12
H90.AD15.B27.063.Z04.56	63	27	63	/	56	4	16
H90.AD15.B32.080.Z05.70	80	32	85	/	70	5	25

													Insert Type	L1mm	L2mm	a°	S mm	R mm
													AP..15T3..	9.52	15.88	11	3.97	0.8
													AD..1505..	9.6	15.95	15	5.64	0.8

Material Type

P

M

K

N

Applicable Insert Type

Alloy steel

Stainless steel

Cast iron

Non-ferrous metals

APMT15T3PDR-F56

FPK20

FCM20

FPK20

-

APHT15T3PDR-K88

-

-

-

FCN20

ADCT1505PDSR

FPK20

FCM20

FPK20

-

Diameter Range(mm)	P				M	K			N
	Unalloyed steel	Low alloyed steel	Tool steel	Martensitic stainless steel	Austenitic stainless steel	Grey cast iron	Ductile cast iron	Malleable iron	Aluminium alloy	Copper alloy	Non-metallic materials
32-80	0.20	0.15	0.15	0.12	0.10	0.25	0.20	0.20	0.15	0.12	0.12
Starting value of feeds(per tooth mm):Suitable for common cutting conditions with a width of cut≥1/2Dc;depth of cut≤1/2Lc
