    45°銑刀

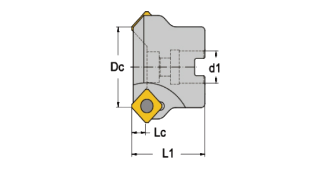

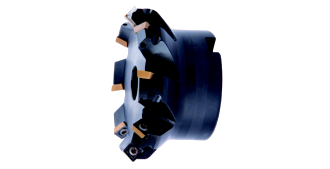

    45°銑刀 45°milling cutter
    45°銑刀.png 45°銑刀-2.png


    Type Dc
    mm     		d1
    mm     		L1
    mm     		Lcmm Z Insert Type Screw Key
    M45.SE12.B22.040.Z03 40 22 40 6.5 3 SE..12T3.. SR14-601 TORX15
    M45.SE12.B22.050.Z04 50 22 40 6.5 4
    M45.SE12.B22.063.Z05 63 22 40 6.5 5
    M45.SE12.B27.080.Z06 80 27 50 6.5 6
    M45.SE12.B32.080.Z06 100 32 50 6.5 6
    M45.SE12.B40.125.Z07 125 40 63 6.5 7
    M45.SE12.B40.160.Z07 160 40 63 6.5 7
    M45.SE12.B60.200.Z10 200 60 63 6.5 10
    M45.SE12.B60.250.Z13 250 60 63 6.5 13


    45°銑刀-3.png Insert Type D
    mm     		a° S
    mm     		b
    mm
    SE..12T3.. 12.7 20 3.8 2.2


    Material Type P M K N
    Applicable lnsert Type Alloy
    steel     		Stainless
    steel     		Castiron Non-ferrous
    metals
    SEMT12T3AFIN-76 FPK20 - FPK20 -


    Diameter Range(mm) P M K N
    Unalloyed
    steel     		Low alloyed
    steel     		Tool
    steel     		Martensitic
    stainless steel     		Austenitic
    stainless steel     		Grey
    cast iron     		Ductile
    cast iron     		Malleable
    iron     		Aluminium
    alloy     		Copper
    alloy     		Non-metallic
    materials
    40-250 0.25 0.20 0.20 0.15 - 0.30 0.25 0.25 - - -
    Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc


    45°銑刀 45°milling cutter
    45°銑刀.png 45°銑刀-4.png FIG1
    45°銑刀-5.png FIG2


    Type Dc
    mm     		d1
    mm     		L1
    mm     		L2
    mm     		Lcmm Z Insert Type Screw Key Drawing
    No.
    M45.SP12.W25.025.Z02 25 25 38 95 7 2 SP..1204.. FCS1030 TORX20 FIG1
    M45.SP12.W32.032.Z03 32 32 44 105 7 3
    M45.SP12.W32.040.Z04 40 32 44 105 7 4
    M45.SD09.B22.040.Z04 40 22 40 / 5 4 SD..09T3.. FCS359 TORX15 FIG2
    M45.SD09.B22.040.Z06 40 22 40 / 5 6
    M45.SD09.B22.050.Z04 50 22 40 / 5 4
    M45.SD09.B22.050.Z08 50 22 40 / 5 8
    M45.SD09.B22.063.Z05 63 22 40 / 5 5
    M45.SD09.B22.063.Z10 63 22 40 / 5 10
    M45.SD09.B22.080.Z06 80 22 50 / 5 6
    M45.SD09.B27.080.Z12 80 27 50 / 5 12
    M45.SD09.B27.100.Z07 100 27 50 / 5 7
    M45.SD09.B32.100.Z14 100 32 50 / 5 14
    M45.SP12.B16.040.Z03 40 16 40 / 7 3 SP..1204.. FCS1030 TORX20
    M45.SP12.B22.050.Z04 50 22 40 / 7 4
    M45.SP12.B22.063.Z05 63 22 40 / 7 5
    M45.SP12.B27.080.Z06 80 27 40 / 7 6
    M45.SP12.B32.100.Z07 100 32 50 / 7 7
    M45.SP12.B40.125.Z08 125 40 63 / 7 8
    M45.SP12.B40.160.Z09 160 40 63 / 7 9
    M45.SX15.B22.063.Z05 63 22 40 / 7 5 SX..1505.. FCS378 TORX15
    M45.SX15.B27.080.Z06 80 27 50 / 7 6
    M45.SX15.B32.100.Z07 100 32 50 / 7 7
    M45.SX15.B40.125.Z08 125 40 63 / 7 8
    M45.SX15.B40.160.Z09 160 40 63 / 7 9


    45°銑刀-3.png Insert Type D
    mm     		a° S
    mm     		b
    mm
    SD..09T3.. 9.52 15 3.97 1.2
    SP..1204.. 12.7 11 4.76 1.4
    SX..1505.. 14.7 14 5.56 3


    Material Type P M K N
    Applicable lnsert Type Alloy
    steel     		Stainless
    steel     		Castiron Non-ferrous
    metals
    SDMT09T3AEN-D57 FPK20 FCM20 FPK20 -
    SPMT1204AEN FPK20 - FPK20 -
    SXKR1505AEN FCP20 - FCK20 -


    Diameter Range(mm) P M K N
    Unalloyed
    steel     		Low alloyed
    steel     		Tool
    steel     		Martensitic
    stainless steel     		Austenitic
    stainless steel     		Grey
    cast iron     		Ductile
    cast iron     		Malleable
    iron     		Aluminium
    alloy     		Copper
    alloy     		Non-metallic
    materials
    25-160 0.25 0.20 0.20 0.15 0.12 0.30 0.25 0.25 - - -
    Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc

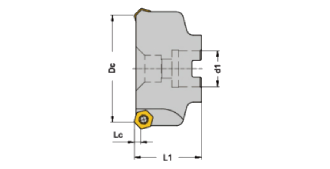

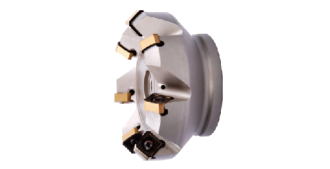

    45°銑刀-負型 45°milling cutter - negative type
    45°銑刀-6.png 45°銑刀-7.png


    Type Dc
    mm     		d1
    mm     		L1
    mm     		Lcmm Z Insert Type Screw Key
    M45.SN12.B22.050.Z04 50 22 40 6.5 4 SN.X1205.. FS1459 TORX15 IP
    M45.SN12.B22.050.Z06 50 22 40 6.5 6
    M45.SN12.B22.063.Z06 63 22 40 6.5 6
    M45.SN12.B22.063.Z08 63 22 40 6.5 8
    M45.SN12.B27.080.Z07 80 27 50 6.5 7
    M45.SN12.B27.080.Z10 80 27 50 6.5 10
    M45.SN12.B32.100.Z08 100 32 50 6.5 8
    M45.SN12.B32.100.Z12 100 32 50 6.5 12
    M45.SN12.B40.125.Z10 125 40 63 6.5 10
    M45.SN12.B40.125.Z16 125 40 63 6.5 16
    M45.SN12.B40.160.Z12 160 40 63 6.5 12
    M45.SN12.B40.160.Z20 160 40 63 6.5 20


    45°銑刀-3.png Insert Type L
    mm     		S
    mm     		b
    mm
    SN.X1205.. 12.7 6.33 1.5


    Material Type P M K N
    Applicable lnsert Type Alloy
    steel     		Stainless
    steel     		Castiron Non-ferrous
    metals
    SNMX120512-F57 FPK20 FCM20 FPK20 -


    Diameter Range(mm) P M K N
    Unalloyed
    steel     		Low alloyed
    steel     		Tool
    steel     		Martensitic
    stainless steel     		Austenitic
    stainless steel     		Grey
    cast iron     		Ductile
    cast iron     		Malleable
    iron     		Aluminium
    alloy     		Copper
    alloy     		Non-metallic
    materials
    25-160 0.25 0.20 0.20 0.15 0.12 0.30 0.25 0.25 - - -
    Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc

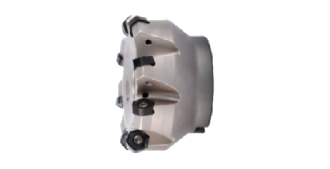

    45°銑刀-負型 45°milling cutter - negative type
    45°銑刀-9.png 45°銑刀-10.png


    Type Dc
    mm     		d1
    mm     		L1
    mm     		Lcmm Z Insert Type Screw Key
    M45.HN07.B22.050.Z05 50 22 40 3.5 5 HN..0704.. 12146034500 TORX15
    M45.HN07.B22.063.Z06 63 22 40 3.5 6
    M45.HN07.B27.080.Z08 80 27 50 3.5 8
    M45.HN07.B32.100.Z10 100 32 63 3.5 10
    M45.HN07.B40.125.Z12 125 40 63 3.5 12
    M45.HN07.B40.160.Z16 160 40 63 3.5 16
    M45.HN07.B40.200.Z20 200 40 63 3.5 20
    M45.HN07.B22.050.Z05-L 50 22 40 3.5 5
    M45.HN07.B22.063.Z06-L 63 22 40 3.5 6
    M45.HN07.B27.080.Z08-L 80 27 50 3.5 8
    M45.HN07.B32.100.Z10-L 100 32 63 3.5 10
    M45.HN07.B40.125.Z12-L 125 40 63 3.5 12
    M45.HN07.B40.160.Z16-L 160 40 63 3.5 16
    M45.HN07.B40.200.Z20-L 200 40 63 3.5 20


    45°銑刀-11.png Insert Type D
    mm     		S
    mm     		R
    mm
    HN..0704.. 12.7 4.48 1.2


    Material Type P M K N
    Applicable lnsert Type Alloy
    steel     		Stainless
    steel     		Castiron Non-ferrous
    metals
    HNPJ0704ANSNGD TN5515 - - FCK20 -
    HNGJ0704ANFNLDJ TN6501 - - - FCN20
    HNPJ0704ANSNHD TN7535 FCP20 - - -
    XNGJ0704ANENLD3W - - FCK20 FCK20


    Diameter Range(mm) P M K N
    Unalloyed
    steel     		Low alloyed
    steel     		Tool
    steel     		Martensitic
    stainless steel     		Austenitic
    stainless steel     		Grey
    cast iron     		Ductile
    cast iron     		Malleable
    iron     		Aluminium
    alloy     		Copper
    alloy     		Non-metallic
    materials
    50-200 0.25 0.20 0.20 0.15 0.12 0.30 0.25 0.25 - - -
    Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc
