    43°銑刀

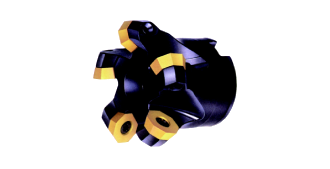

    43°銑刀 43°milling cutter
    43°銑刀.png 43°銑刀-2.png

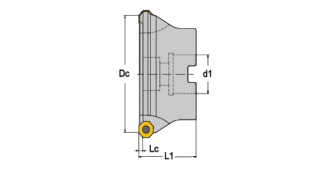

    Type Dc
    mm     		d1
    mm     		L1
    mm     		Lcmm Z Insert Type Screw Key
    M43.OD06.B16.050.Z03 40 16 40 4 3 OD..0605.. FS103 TORX20
    M43.OD06.B16.050DC.Z03 50 16 40 4 3
    M43.OD06.B22.052.Z03 42 22 45 4 3
    M43.OD06.B22.063.Z04 53 22 40 4 4
    M43.OD06.B22.063.Z05 53 22 40 4 5
    M43.OD06.B22.063DC.Z05 63 22 40 4 5
    M43.OD06.B27.066.Z05 56 27 50 4 5
    M43.OD06.B27.080.Z05 80 27 50 4 5
    M43.OD06.B27.080.Z06 80 27 50 4 6
    M43.OD06.B27.080DC.Z06 80 27 50 4 6
    M43.OD06.B32.100.Z05 100 32 50 4 5
    M43.OD06.B32.100.Z07 100 32 50 4 7
    M43.OD06.B32.100DC.Z07 100 32 50 4 7
    M43.OD06.B40.125.Z06 125 40 63 4 6
    M43.OD06.B40.125.Z08 125 40 63 4 8
    M43.OD06.B40.125DC.Z08 125 40 63 4 8
    M43.OD06.B40.160.Z07 160 40 63 4 7
    M43.OD06.B40.160.Z09 160 40 63 4 9
    M43.OD06.B40.160DC.Z09 160 40 63 4 9


    43°銑刀-3.png Insert Type D
    mm     		a° S
    mm
    OD..0605.. 15.88 15 6


    Material Type P M K N
    Applicable lnsert Type Alloy
    steel     		Stainless
    steel     		Castiron Non-ferrous
    metals
    ODMT0605ZZN FPK20 FCM20 FPK20 -
    ODHT0605ZZN - - - FCN20


    Diameter Range(mm) P M K N
    Unalloyed
    steel     		Low alloyed
    steel     		Tool
    steel     		Martensitic
    stainless steel     		Austenitic
    stainless steel     		Grey
    cast iron     		Ductile
    cast iron     		Malleable
    iron     		Aluminium
    alloy     		Copper
    alloy     		Non-metallic
    materials
    40-160 0.50 0.45 0.35 0.25 0.15 0.50 0.40 0.40 - - -
    Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc
